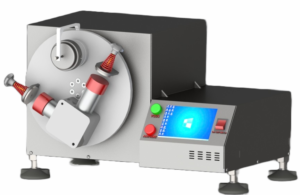

CHAKRAVAT – Fully Programmable Induction Port & Mouthpiece Shaker
CHAKRAVAT – Fully Programmable Induction Port & Mouthpiece Shaker — product video
CHAKRAVAT — FULLY PROGRAMMABLE INDUCTION PORT AND MOUTHPIECE SHAKER :
User Selectable: Continuously Rotate/Oscillate
Continuous Rotation Mode Parameters:
- Rotation Duration
- Rotation Speed
Oscillation Mode Parameters:
- Oscillation angle
- Pause-Time between Oscillation Reversal
- Oscillation Speed
CHAKRAVAT is fully programmable and designed specifically for preparing samples by dissolving drug present in induction ports, DUSA tubes and mouthpiece adapters. This compact yet powerful device ensures quick, complete and repeatable drug recovery for APSD and DDU tests.
Key features
- Touch screen user interface for easy operation
- Detachable mouthpiece wash container
- Indicators and USB ports for external mouse, keyboard or printer
- Induction port and DUSA tube holder with variable size acceptance
- Handles 10 DUSA tubes at a time
- Secure login — admin and guest accounts, with credential change function
- Timer up to 10+ hours, revolutions up to 9999 cycles
Technical specifications
| Rotation directions | Clockwise and anticlockwise |
|---|---|
| Acceleration / deceleration | max 60 rpm |
| Speed | max 40 rpm |
| Connection ports | USB B |
| Dimensions (w×d×h) | 497 × 314 × 288 mm |
| Net weight | 15 kg |
Deliverables
- Induction port attachment
- DUSA tube attachment
